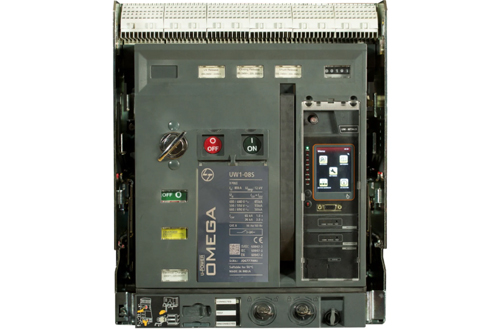

OMEGA Air Circuit Breakers

  • Awarded Best Product at Elecrama
  • Range from 400A to 6300A
  • Breaking capacity from 50kA to 100kA
  • Break Time of 25msec
  • Superior Safety Features
  • Arc Chute Interlock
  • Smart Racking Shutter
  • Password Protection
  • Temperature Monitoring and Protection
  • Double Short Circuit Protection
  • Quick System Up-gradation
  • Advance Protection Releases with advance Protection and Communication Protocols
  • Best in class termination overlap with bus-bars

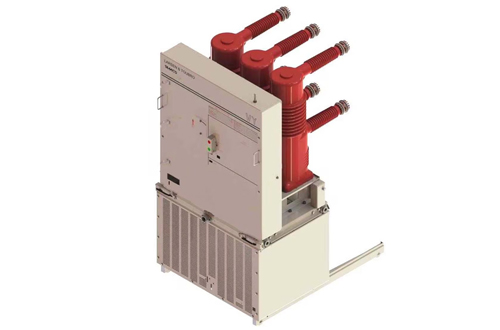

MV Switchgears

  • Complies with IEC 62271-100, 62271-102 and 62271-200
  • Type tested indoor MV panel up to 33kV system voltage
  • Complete range from 630A to 3150A
  • Short time rating up to 50KA for 3 Sec
  • Internal arc classification AFLR up to 40kA for 1 Sec and 50kA for 0.5 second (for full panel only)
  • Metal Clad, fully compartmentalised panel
  • Indoor type panel with ingress protection rating up to IP5X for 11kV & IP4X for 33kV
  • Horizontal isolation, horizontal draw-out & floor rolling trolley type VCB
  • Endurance class conforms to M2/E2/C2
  • Loss of service continuity category is LSC2B
  • True close door operation & all operations are behind close door

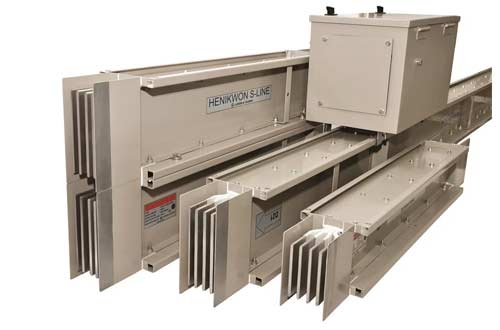

Busbar Trunking System

  • Range from 250A to 6300A (Aluminium)
  • Range from 400A to 6300A (Copper)
  • Operational voltage up to 1000V & AC
  • Joint block with maintenance-free Twin-headed shear-off Nut
  • Plug-in box with mechanical interlock & safety features
  • Robust, safe, and reliable solution
  • UL certified Class-F insulation
  • Ingress protection up to IP66
  • Certified for Seismic zone-V compliance
  • Fire resistance system

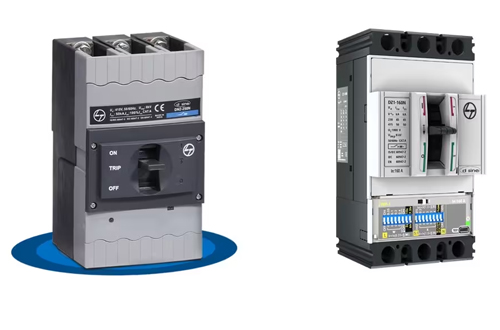

MCCB - Moulded Case Circuit Breaker

  • Wide range from 20A to 1250A
  • State of the art design with user friendly features
  • Available in 3 Pole & 4 Pole versions
  • Range of 25kA/36kA/50kA/70kA/100kA breaking capacities
  • Wide spectrum of protection releases suitable for extreme tropical conditions
  • Microprocessor and Thermal-Magnetic based protection releases
  • MCCBs for varied applications of motor backup protection, distribution, DC and SD versions
  • Manual, rotary or motorized versions
  • Wide range of user friendly internal and external accessories
  • RoHS compliant

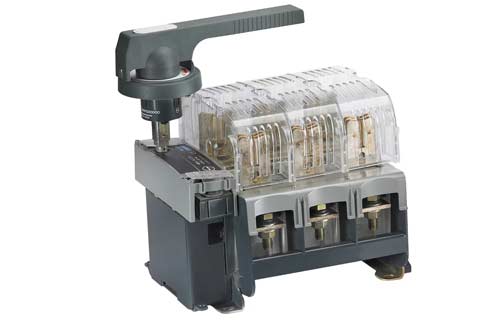

SFU - Switch Fuse Unit

    • Range 32A to 800A, AC 23A
    • Suitable for Cylindrical/DIN fuse-link
    • Conforms to IEC 60947-2, IS/IEC 60947-2
    • Telescopic shaft for depth adjustment
    • Door interlock & padlock facility
    • FN 4-Pole with in-built Neutral Link
    • Terminal shrouds on both sides

Power Quality Solutions

PF Correction:
  • Standard Duty Capacitors
  • Standard Duty Capacitors with MCB & LED
  • Gas Filled Capacitors
  • Heavy Duty Capacitors
  • Super Heavy Duty Capacitors
  • APP Heavy Duty Capacitors
  • Ultra Heavy Duty Capacitors
Harmonic Mitigation & Solutions:
  • Detuned Reactors 7 % & 14 %
  • Active Harmonic Filter
Capacitor Switching & Controllers:
  • MO C Contactors
  • Thyristor Switching Modules
  • etaULTRA – 3 CT Sensing for APFC Controller for Contactor and Thyristor Switching
  • etaSMART – 1 CT Sensing for APFC Controller for Contactor and Thyristor Switching
  • etaCON M – 1 CT Sensing for APFC Controller for Contactor Switching
PQ Solutions:
  • etaSYS APFC Panels
  • Hybrid Harmonic Filter

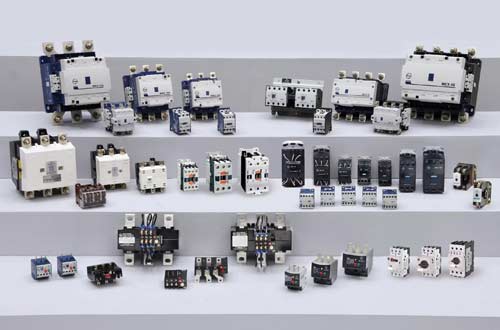

Controlgears

Power Contactors
  • 1 pole, 2 pole, 3 pole, and 4 pole Contactors
  • 3 pole contactor range: 6-820 A (AC-3 rating)
  • Available in both AC and DC Coil
  • 3P Universal Electronic Coil contactors available
  • 4 pole contactor range: 16-800 A (AC-1 rating)
  • Wide range of accessories such as mechanical Latch and Links available for all kinds of applications
Motor Protection Circuit Breakers
  • Available from 0.16-63 A
  • Short circuit and overload protection
  • Common accessories across frames and multiple links for busbar connections
  • In-built padlock feature
Overload Relays
  • Thermal Overload Relays Range: 0.2-650A
  • Electronic Overload Relay Range: 0.15-1350
Industrial Starters
  • Range: 10HP to 125 HP in DOL and Star-Delta version
  • IP-54 degree of protection

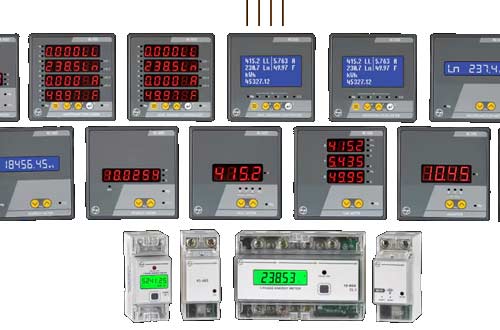

Digital Meters

Key Features:
  • Meters with Class 1, Class 0.5, 0.5S, Class 0.2, 0.2S accuracy
  • Meters with THD and Individual Harmonics up to 31st
  • Direct access to Basic, Power, Energy parameters through front keys
  • RS485 or Ethernet communication available
  • Analog, Digital inputs and outputs
  • Data logging options
L&T's metering solutions includes:
  • Single function meters
  • VAF + PF meters
  • Energy meters
  • Dual Source meters
  • Basic Multifunction meters
  • Advanced Multifunction meters
  • Max Demand Controller
  • DIN mount meters

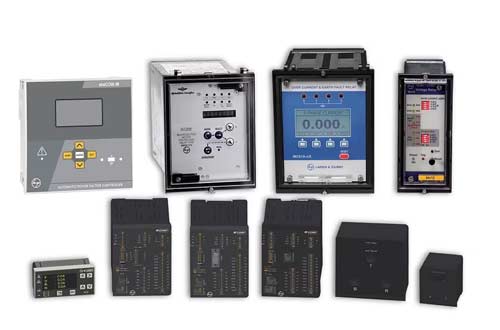

Protection Relays

Wide Range of Numerical Relays for LV and MV Applications:
  • Intelligent Motor Management Relays
  • Motor Protection Relays
  • Over Current & Earth Fault Relays
  • Voltage Monitoring Relays
  • Reverse Power Relays

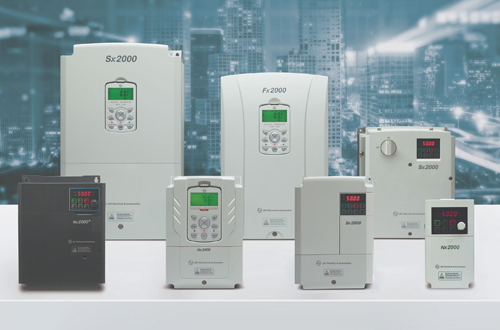

AC Inverter Drives

x2000 Range Features:
  • Range: 0.1 kW to 450 kW
  • Conformal coating complying to IEC 60721-3-3, Class 3C3
  • RS 485 ModBus communication as standard in all models
  • Brake sequence for external brake control
  • Built-in PID for process control
  • Built-in RTC for real-time monitoring and scheduling in Hx2000
  • 1 main PID and 3 EPID in Hx2000
  • Inbuilt PLC functionality in Sx2000
  • Inbuilt Smart PLC option in Fx2000
  • Overload protection of 150% for 60 seconds and 200% for 3 seconds in Fx2000
  • Ambient temperature: -10 to 50°C
Applications:
  • Crane
  • Textile machinery
  • Wire Drawing
  • Cable winding
  • Fans
  • Pumps
  • HVAC
  • Extruders
  • Plastic machinery
  • Musical fountain
  • Solar pumps
  • Many more industrial as well as OEM applications

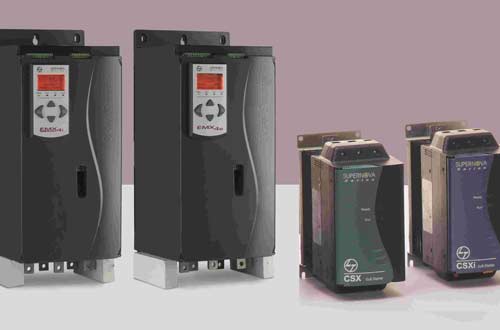

Soft Starters

Models:
  • EMX4i
  • EMX4e
  • EMX3
  • CSXi
  • CSX
Range:
  • From 7.5kW up to 800kW in 415V & 690V class
Key Features:
  • Option for inbuilt as well as external bypass contactor
  • Flexible busbars for easy termination
  • Detachable terminal blocks
  • Up to 384 event logs
  • USB port to upload/download parameters, logs & software flashing
  • Run simulation mode for faster installations

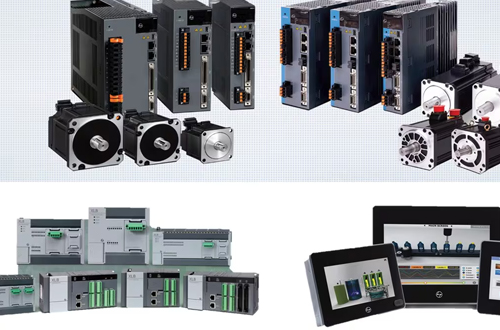

Automation Products

PLC Range
  • Up to 352 local I/O points
  • Up to 5728 remote I/O points
HMI Range
  • Text Display
  • 4” ~ 15” TFT color LCD
Servo Range
  • Capacity: 0.1kW to 15kW
  • Voltage: 200Vac / 400Vac
  • Speed: 1500rpm / 3000rpm
  • Control: Pulse/Analog or Network

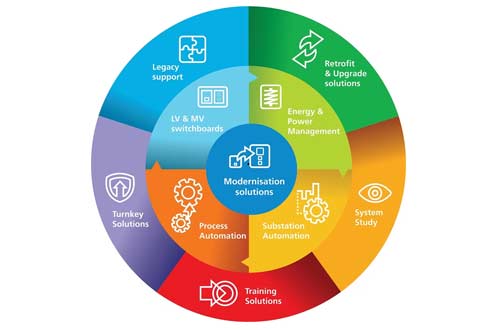

Modernisation Solution

L&T E&A’s modernization solutions open up a new range of possibilities to extend the life of your installation, improving the utilization of assets and migration to a new environment-friendly, efficient, and reliable tomorrow.

L&T E&A’s FitRight solutions can help you prepare a comprehensive modernization programme for your electrical and automation system.

FitRight Solutions

FitRight solutions help you plan and implement initiatives to improve your:

  • Process - improving productivity, quality, and reducing cost
  • Safety - upgrading your installation for enhanced safety and conformance to latest standards
  • Efficiency - reducing losses and optimizing processes
  • Reliability - improving system uptime and eliminating breakdowns
  • Power quality - enhancing power quality to support a more stable operating environment

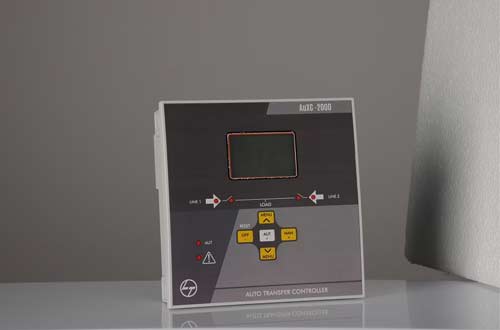

Automatic Source Transfer Solution

Convenience
  • Cyclic Event Logger: Logs 100 Events
  • Ease of Generator Control (ON-OFF, Cooling Cycle Self-Test)
Performance
  • Wide range: 125A to 630A, 415V AC
  • Double-Break Contact System offering High Short-time Withstand (Icw)
  • High Mechanical and Electrical Life: Double the requirement of IS/IEC standard
Flexibility
  • Adjustable Time Delay (0.1 sec to 3 hours)
  • Priority Source Selection
  • Suitable for 3-Phase as well as 1-Phase Sources
Safety
  • Authorized Access Control through Password Protection
  • Protections: UV/OV, Phase Sequence, Single Phasing, Frequency

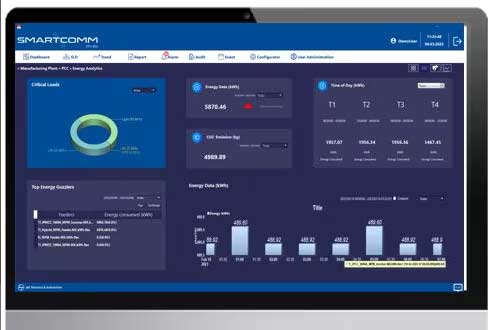

Smartcomm Solution

SmartComm EMS

SmartComm Energy Management System enables you to measure and monitor your electrical system, consequently helping you save energy. At the heart of this monitoring system are our digital panel meters, with a host of benefits.

Key Features:
  • Simple and powerful energy monitoring software with multiple benefits that empower the user to save money.
  • Empowers the user to take corrective actions in areas of energy wastage.
  • Management of energy for optimal utilization.
  • Save money by identifying energy guzzlers for corrective actions to conserve energy.
  • Glimpse of all entire energy consumption in the plant through dashboard.
  • Provision to generate multiple report types.
  • On-premises server or Web based access with cloud solution provision.
SmartComm PMS Benefits:
  • SCADA based Power Management Software to communicate communication capable electrical products from 128 tags to Unlimited tags offering
  • Insightful Dashboards like Energy Analytics, etc. enables you to decide Actionable
  • Holistic view of your Power Distribution Network through SLD
  • Remote Monitoring and operation of Communication Capable Devices
  • Alerts for any abnormality in Power Distribution System
  • Trend Monitoring based on Historical Data and Live Data
  • Fault information allows you in reducing Downtime, enhancing Power reliability & hence Productivity
  • Powerful Reporting Tool allows you to get Customized Reports
  • Power Quality visibility helps you in ensuring Clean Power to your load and hence maximizing uptime and machine’s life
  • Remote Monitoring via Web Client provides flexibility to monitor Power System & access the software features from anywhere
  • Supports multiple communication protocols like Modbus TCP, Simatic S7, OPC-DA, OPC-UA (optional), IEC61850 (optional), IEC-60870-104 (optional), DNP3.0 (optional), etc.
  • ISO 50001 certified software
