Compliance to Internal Arc – 85kA - 0.5 Sec as per IEC 61641
Seismic Tested & compliance to Zone V as per IS1893 & compliance to IEC60068-3, ICC ES AC 156

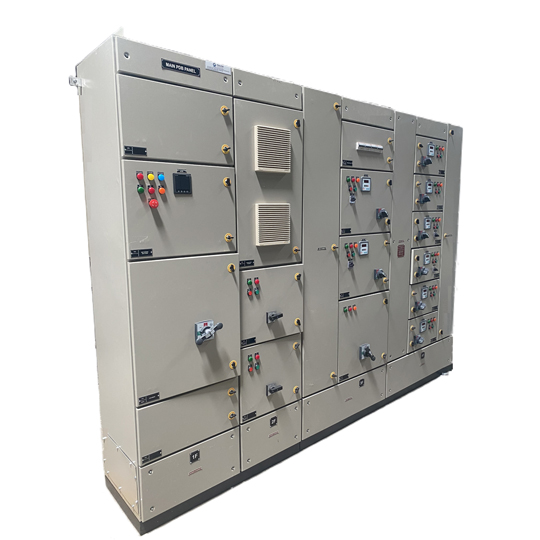

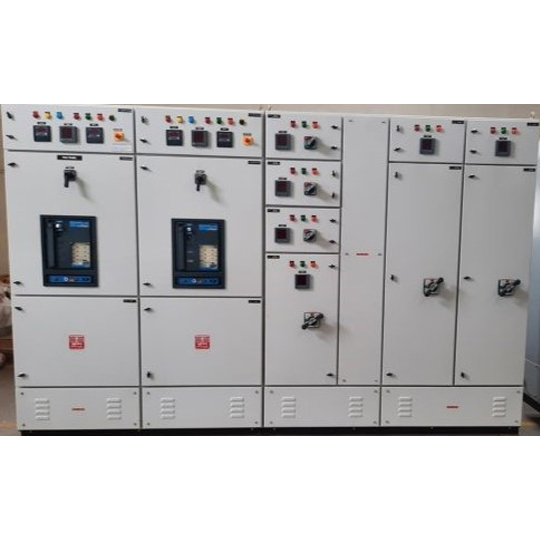

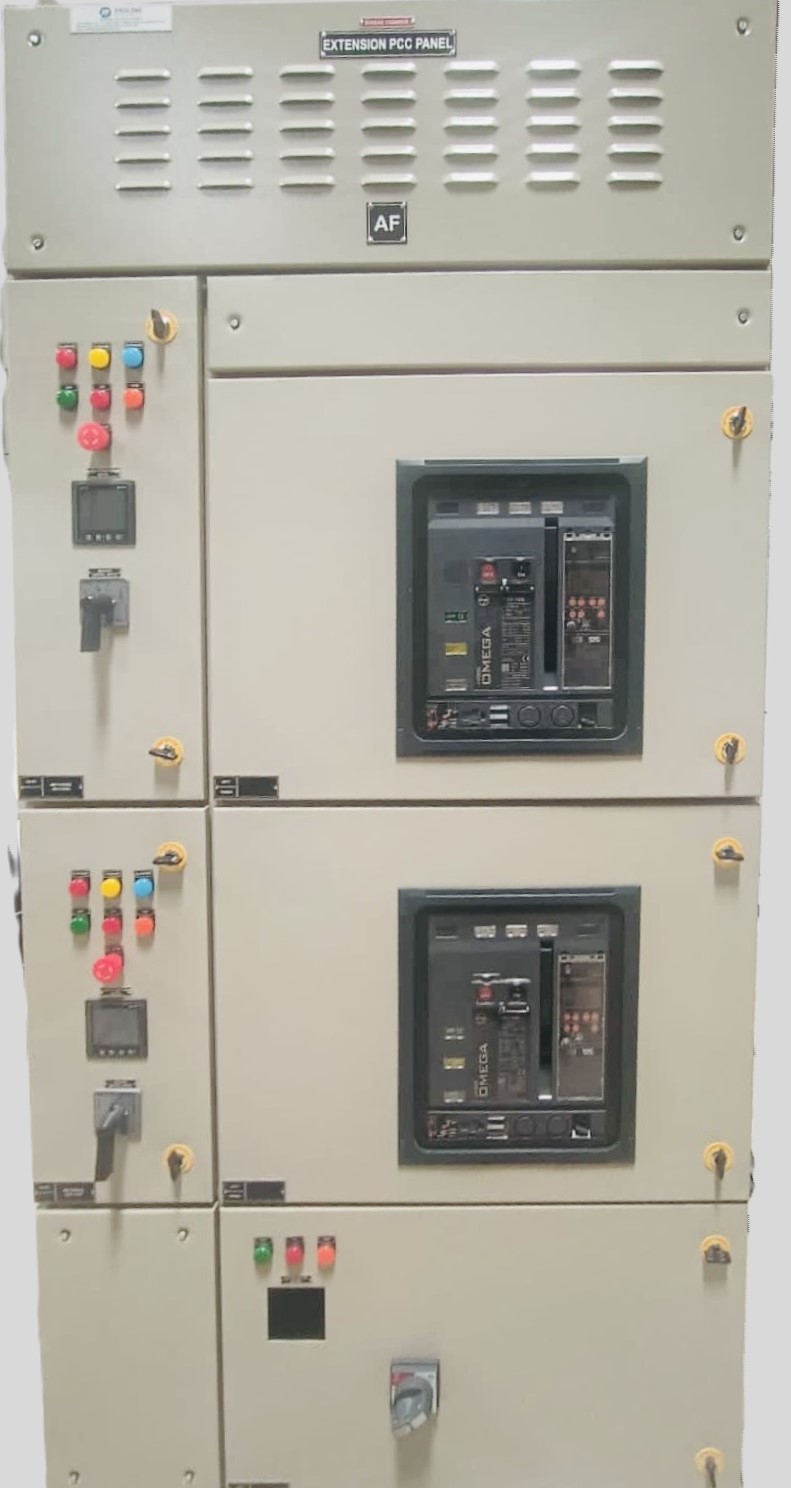

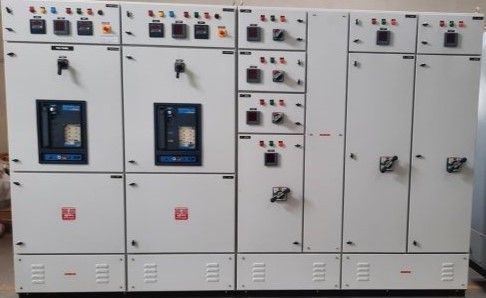

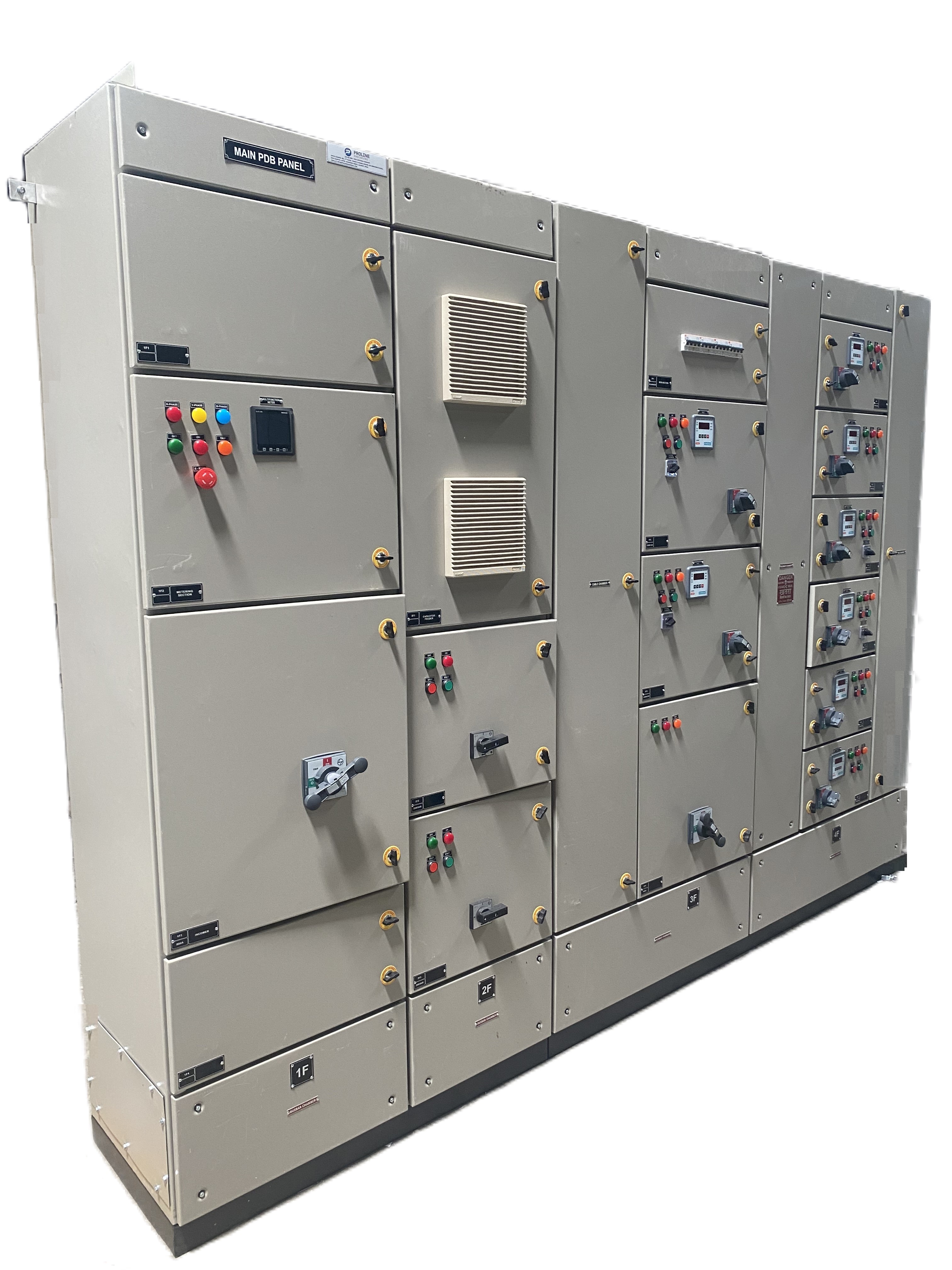

LV Panels - PCC, PMCC, MCC, PDB, MLDB, LDB
Degree of protection: IP 54 (higher values on request).
Draw out panels with full customization in dimension as well as scheme.

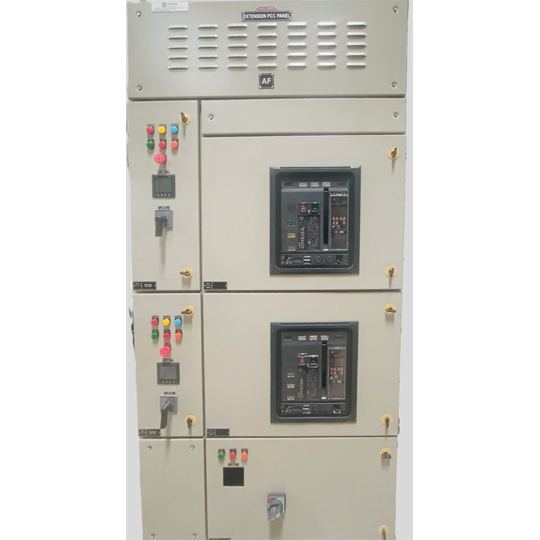

Power Control Centre up to 6300 Amps for Power Distribution & Control Of Main Supply & DG Supply with Auto/Manual changeover.

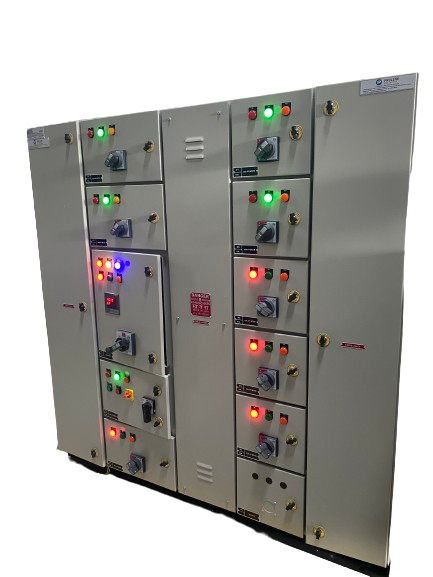

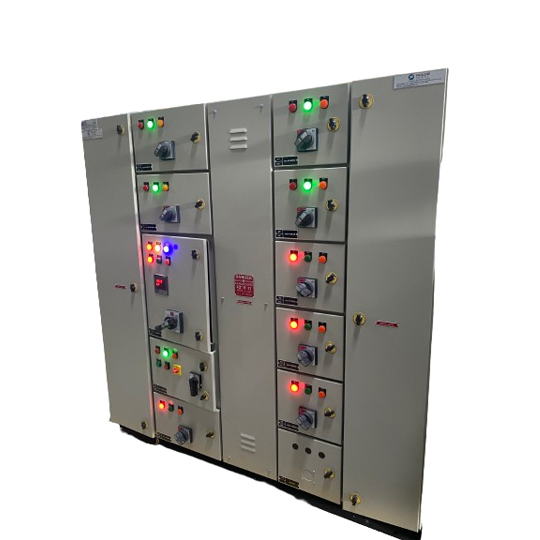

Motor Control Centre up to 5000 Amps for Protection & Control Of Motors with Various types of starters (i.e. DOL, Star-Delta, VFD, Soft starters.) and Types of Coordination (Type-1 & Type-2) depending upon requirement/capacity.
Automatic Power Factor Controller panels with Harmonics Filter/Reactors.
Power and Lighting Distribution Boards in SS-316 enclosure as well for outdoor applications.
Up to 1100V Rated Insulation level.

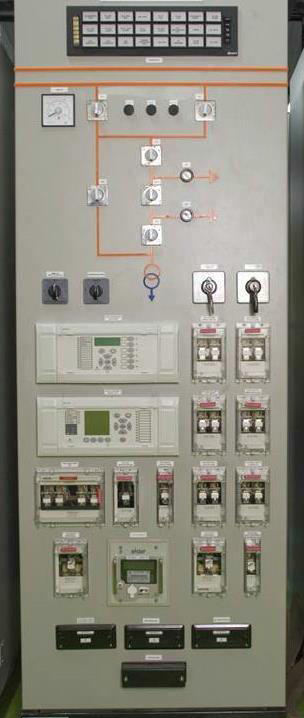

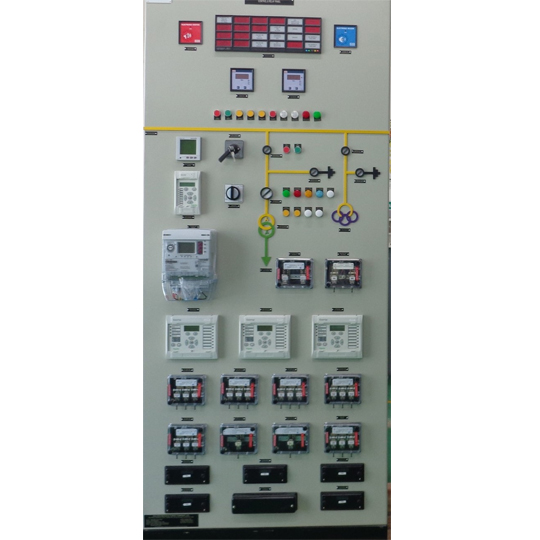

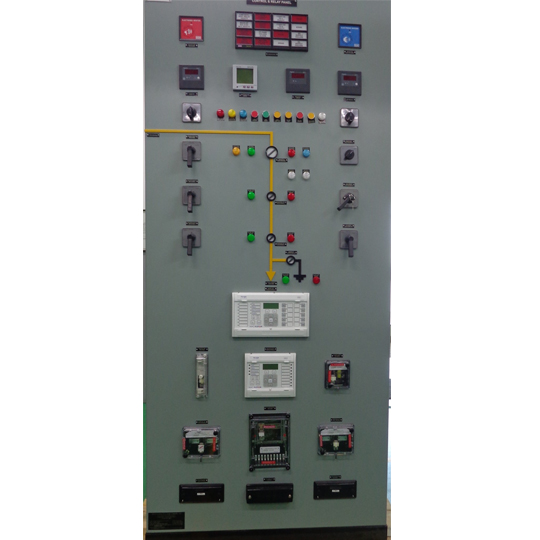

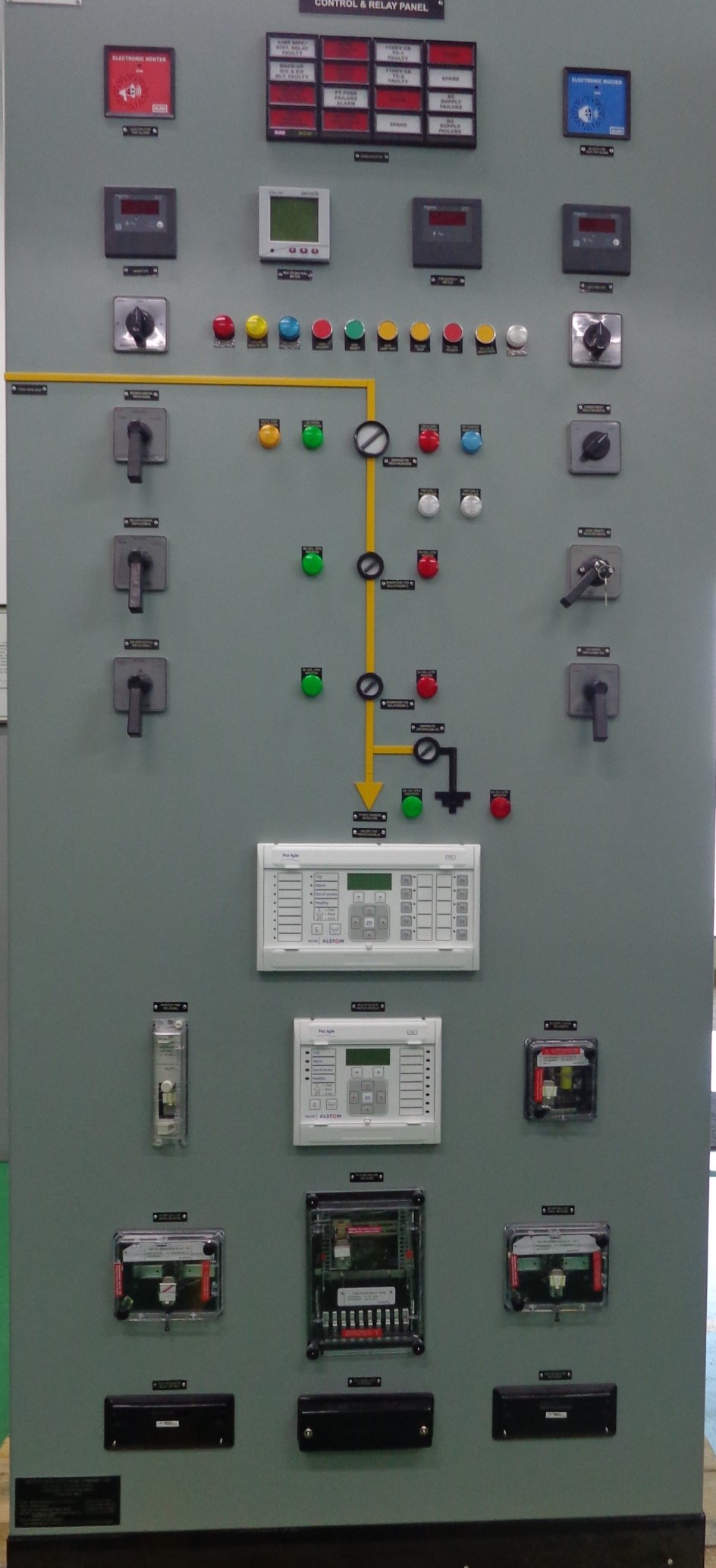

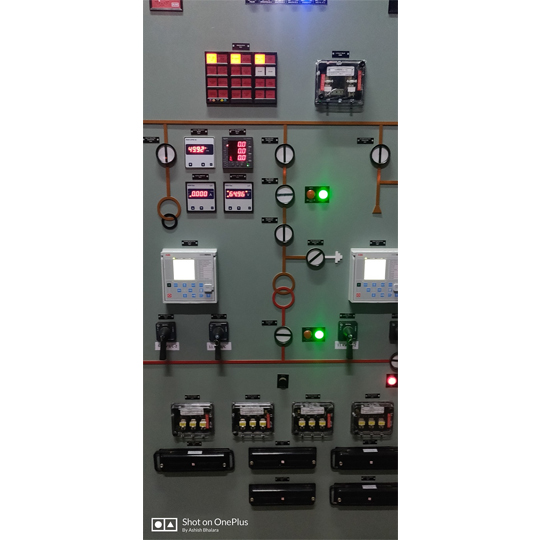

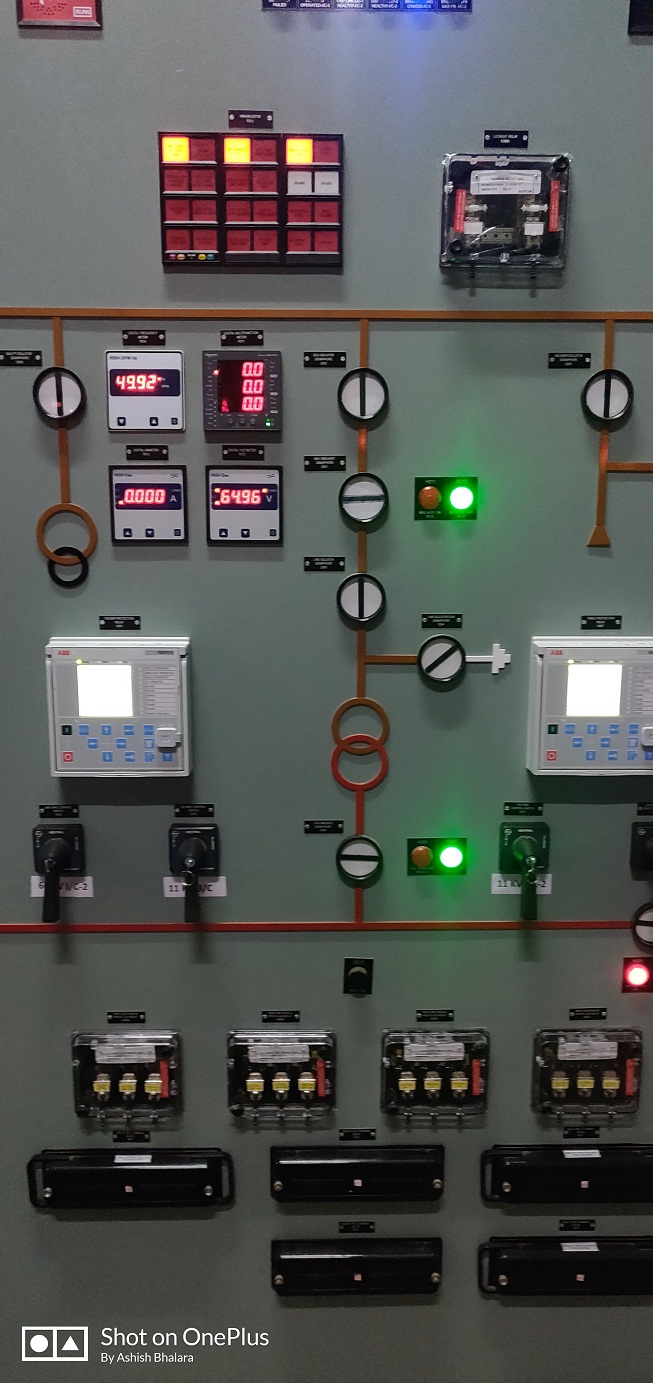

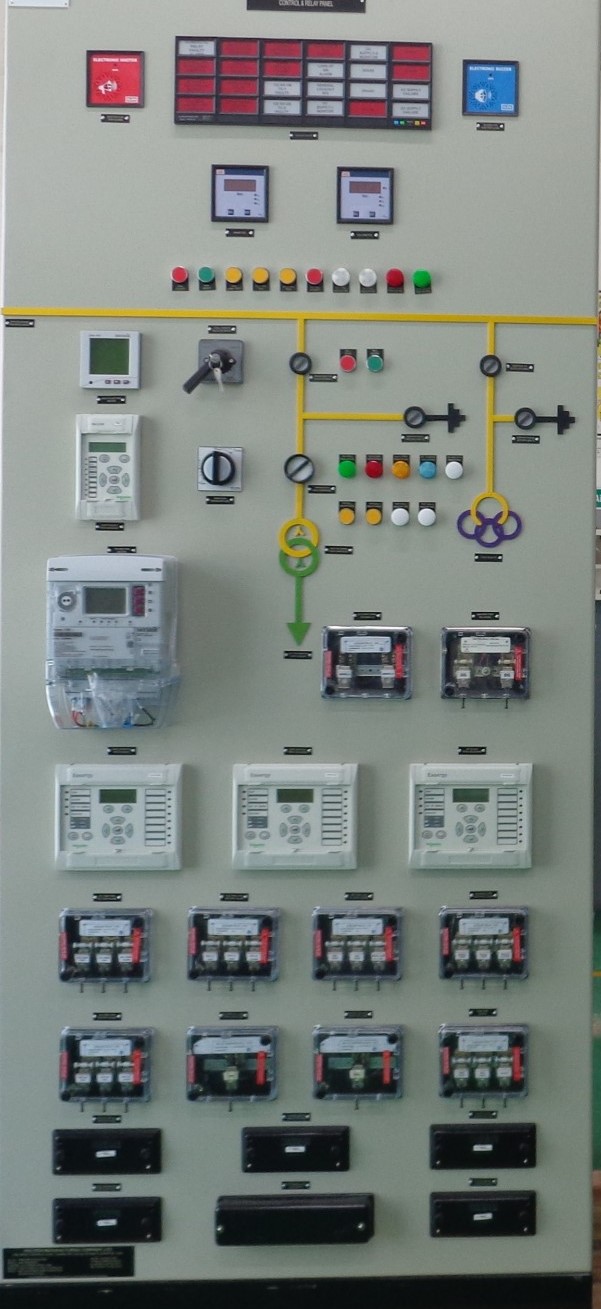

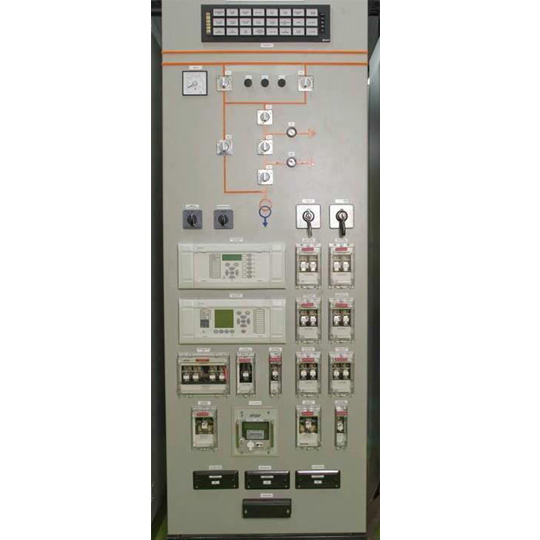

CRP - Control and Relay Panel up to 220KV
Simplex and Duplex panel designs.
For Various Protections (Generator, Transformer, Feeder), Metering & Synchronizing panels with auto-manual mode.
Integration of various Numerical and Electromechanical Relays as per the Requirement.
Degree of protection: IP 51 (higher values on request).
Suitable for the system up to 220kV.
Extensible on both LH-RH side.
Self-manufactured CRC enclosures.
Sufficient Space for the Control Cable Termination.
High Quality Gaskets used for Dust & Vermin Protection.

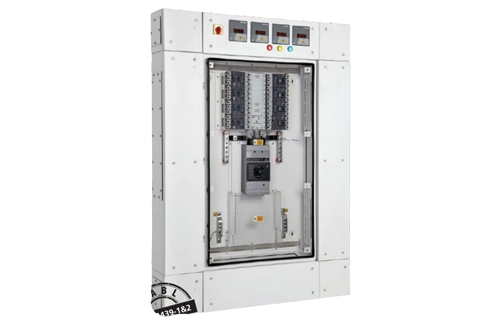

SMDB – Sub Main Distribution Boards
Enersys Panel Solution
Range up to 4000A CU/AL
Short-circuit withstand up to 80kA - 1 Sec
Ingress protection up to IP54
Forms of separation up to FORM-4b
Compliance to Internal Arc – 85kA - 0.5 Sec as per IEC 61641
Seismic Tested & compliance to IEC60068-3, ICC ES AC 156
